تجزیه و تحلیل کیفی میوه سیب در طول ذخیره‌سازی با استفاده از تصویربرداری تشدید مغناطیسی

نوع مقاله : مقاله پژوهشی لاتین

نویسندگان

• رسول خدابخشیان ¹
• رضا باغبانی ²

¹ گروه مهندسی بیوسیستم، دانشکده کشاورزی، دانشگاه فردوسی مشهد، ایران

² گروه مهندسی کشاورزی، دانشگاه ملی مهارت، تهران، ایران

https://doi.org/10.22067/jam.2024.87861.1243

چکیده

تصویربرداری تشدید مغناطیسی (MRI)، یک روش غیرمخرب برای تعیین کیفیت میوه‌ها است که با پروتکل‌های مختلف، چگالی و ساختار اتم‌های هیدروژن را که در آن قرار می‌گیرد نشان‌می دهد. در این مطالعه تصاویر MRI گرفته‌شده با پروتکل‌های مختلف از بافت گوشتی و قسمت کبودشده میوه سیب بدون آفت و با آفت مقایسه و بهترین پروتکل معرفی شد. برای این منظور، تصویربرداری تشدید مغناطیسی (MRI) با استفاده از دو پروتکل T₁ و T₂ بر روی 200 میوه سیب بارگذاری‌شده در حین نگهداری انجام شد. بارگیری میوه‌ها در چهار سطح 150، 300، 450 و 600 نیوتن به‌صورت شبه‌استاتیک انجام شد و سپس در دوره‌های 25، 50 و 75 روزه در دمای 4 درجه سانتی‌گراد نگهداری شد. در پایان هر دوره ذخیره‌سازی، تصویربرداری انجام شد. سپس کنتراست تصاویر T₁ و T₂ صدا و بافت کبودشده میوه سیب با و بدون آفت با استفاده از نرم‌افزار ImageJ تعیین شد. نتیجه‌گیری شد که بافت صوتی میوه سیب بدون آفت در تصاویر T₁ واضح‌تر از تصاویر T₂ بود. همچنین دیده شده است که ناحیه کبودی میوه‌های بدون آفت در تصاویر T₂ بیشتر از تصاویر T₁ قابل‌تشخیص است.

کلیدواژه‌ها

• آنالیز هیستوگرام
• تصویربرداری تشدید مغناطیسی
• کیفیت
• میوه سیب

موضوعات

• تکنولوژی‌های پس از برداشت

Introduction

The apple fruit with the scientific name Malus Domestica is a widely consumed fruit known for its rich content of sugars, vitamins, anthocyanins, minerals, and various other nutrients (>Zhang et al., 2019). Nowadays, apples are regarded as one of the most important sources of health benefits due to their components, which include antioxidants, antimicrobial agents, and wound-healing properties (Zhang et al., 2022). One of the factors that caused the drop in the quality of apple fruit is pest. Also, the risk of quality loss is increased by the fact that fresh fruit is highly perishable during storage and transportation (Shicheng, Youwen, Ping, Kuan, and Shiyuan, 2019). Due to the prevalence of pests in apple fruit, as well as compressive forces and external stresses during harvest, transportation, etc., detection of decayed fruit is essential. However, detection of decayed apple fruit mostly relies on manual work. Manual work is inefficient and unreliable (Leiva-Valenzuela and Aguilera, 2013). Therefore, to ensure the minimum acceptability of the fruit’s quality to consumers, a healthy, non-destructive, high-accuracy method should be used in the quality sorting of apple fruit.

During the last decade, many researchers have used non-destructive methods to study the quality of foods and fruits such as electronic tongue and electronic nose (Lu, Hu, Hu, Li, and Tian, 2022); x-ray computed tomography (Olakanmi, Karunakaran, and Jayas, 2023); ultrasonic wave propagation (Mierzwa, Szadzinska, Gapinski, Radziejewska-Kubzdela, and Biegańska-Marecik, 2022); hyperspectral imaging (Khodabakhshian and Emadi, 2017; Wieme et al., 2022); nuclear magnetic resonance (Ozel and Oztop, 2021; Perez-Palacios et al., 2023); near infrared spectroscopy (Lan et al., 2022) and Raman spectroscopy (Khodabakhshian, 2022). Among these methods, magnetic resonance imaging (MRI) has become well known due to its advantages, such as reliable online quality assessment, excellent soft tissue differentiation compared to X-ray imaging, and its applications in studying the ripening stage and ripening of fruits, pathogen invasion, tissue chemistry, water transfer and diffusion, and oxygen diffusion in agricultural products (Srivastava, Talluri, Beebi and Kumar, 2018; Perez-Palacios et al., 2023). On the other hand, this non-destructive technique can analyze the distribution and motility of protons in water molecules and other metabolites concentrated in biological tissue. So, it is usable to determine the change in the concentration of oil and water in food and agricultural products, which is usually associated with maturity, damage and fruit rot (Perez-Palacios et al., 2023).

Usually, three types of protocols are used in magnetic resonance imaging: T₁, T₂, and proton density-weighted images. T₁ and T₂ are two completely separate time parameters that can be detected and measured after RF pulse excitation. The comparison between these two times and their ratio in different states is the basis of magnetic resonance imaging (Perez-Palacios et al., 2023). The MRI imaging protocol is determined by considering the structure of the tissue being imaged in terms of the density of water and hydrocarbon molecules.

Many researchers have used magnetic resonance imaging to study agricultural products (Defraeye et al., 2013; Galed, Fernández-Valle, Martinez, and Heras, 2004; Gonzalez et al., 2001; Herremans et al., 2014; Mazhar et al., 2015; Ozel and Oztop, 2021; Perez-Palacios et al., 2023; Razavi, Asghari, Azadbakh, and Shamsabadi, 2018; Shicheng et al., 2019; Zhang and McCarthy, 2012). In one research, the effect of force and storage time on the distribution of bruising volume of Darghazi pears was studied with the help of image data obtained from magnetic resonance imaging, and they concluded that the applied force leads to a linear increase in the bruising volume during the storage period, while the effect of storage time on the diffusion of distribution of bruising is non-linear (Razavi et al., 2018). Shicheng et al. (2019) used low-field nuclear magnetic resonance (LF-NMR) data to detect decayed blueberry fruit from healthy. Also, in another experiment, Gonzalez et al. (2001) investigated the development of internal tissue browning due to high levels of carbon dioxide in the storage of Fuji apples in a controlled atmosphere, and it was concluded that T₂ measurements of images produced better contrast between normal tissue and tissue with intrinsic browning compared to the image produced using differences in proton density or T₁ measurements.

Therefore, the aim of the current research was to determine which MRI protocol performed best for different parts of the apple fruit. The two imaging protocols, T₁ and T₂, were compared across various areas of the apple, including the healthy tissue, bruised areas, and the fruit core, using the desired protocols for both pest-free and pest-infested apples.

Materials and Methods

Sample collection and preparation

In this experiment, a total of 200 apple fruits of the same size, grown in 2021 from a commercial orchard in Mashhad, Khorasan Razavi province, Iran were randomly collected. The physico-chemical properties of the studied apple variety are shown in Table 1. The fruits were divided into two groups, based on the subjective evaluation of their skin texture: (i) Healthy fruits without pests, and (ii) Infected fruits infested with pests. Then all samples were individually washed, numbered and placed in plastic boxes. After selection, apples were transported to the physical properties laboratory and stored in periods of 25, 50, and 75 days at 4 °C. Before starting the experiment, the samples were taken out of the refrigerator and placed at room temperature (22°C) for approximately 2 hours in order to reach temperature equilibrium (hodabakhshian et al., 2017). MRI experiments were performed on all samples.

Table 1. Physico-chemical properties of the studied apple variety

Variety	Soluble Solids (Brix)	Titratable Acidity (gL-1)	pH	Geometric mean diameter (mm)	Fruit density (gcm-3)	Moisture (% w.b.)
Golden Delicious	13.2 ± 0.4	0.6 ± 0.1	3.5 ± 0.2	65.09 ± 5.2	0.94 ± 0.12	86.68 ± 0.13

In order to study apple susceptibility to bruising during the storage period, the quasi-static compression was used to create the bruised area. The quasi- static compression force was exerted on equatorial regions of samples of each group by the same probe (plunger) using Mechanical Testing Machine (Model H5KS, Tinius Olsen Company) with a load cell of 5 4903.33 N. Each individual sample was loaded at pretest speed 1.5 mm min-1, the test speed of 0.5 mm min-1, four levels 150, 300, 450, and 600 N (Khodabakhshian, Emadi, Khojastehpour, and Golzarian, 2019). These four levels were selected to load the samples (in three replications) according to the initial tests on the fruit. It was observed that a force higher than this amount caused the complete failure of the fruit and on the other hand, a force less than about 150 Newtons did not have a significant effect on the fruit. In this experiment, samples were positioned horizontally (Figure 1) during loading, and the amount of force-deformation of the fruits were recorded.

MRI measurements

Magnetic resonance imaging was performed with two protocols T₁ and T₂ to examine the differences between these types of imaging and to detect healthy, infected, and bruised areas of the samples, as well as the ability to detect its various components and tissues. T₁ imaging differentiates between adipose tissue and water, showing water as lighter than adipose tissue. T₂ imaging, similar to T₁-weighted imaging, separates fat and water but with the difference that fat appears lighter and water appears darker in the image (McRobbie, Moore, Graves, and Prince 2009; Perez-Palacios et al., 2023). As it was stated in section 2.1, the samples were stored for periods of 25, 50, and 75 days at 4 °C in a refrigerator. At the end of each period of storage, magnetic resonance imaging with T₁ and T₂ protocols was performed using Alltech EchoStar 1.5T magnetic resonance imaging device in Aref Imaging Medical Center in Mashhad, Khorasan Razavi province, Iran (Figure 2). These images were acquired with a field of view of 350 × 350 mm, thickness of 3 mm, pixel depth of 3 mm, recovery time (TR) of 905 ms, effective echo time (TE) of 10 ms for T₁, and TR of 5598 ms and TE f 100 ms for T₂. The total acquisition time was 4 min 2s for all the slices, for all experiments (Herremans et al., 2014; Noshad, Asghari, Azadbakht, and Ghasemnezhad, 2020). For each fruit, approximately 45 slices were obtained, ranging from 43 to 47, depending on the apple size. ImageJ software was used to compare the contrast in T₁ and T₂ images. With help of this software, samples of healthy tissue, infected tissue, and bruised tissue due to quasi-static compression were studied and the histogram of these samples were compared.

Data Analysis

A completely randomized design (CRD) in factorial with two experimental factors was employed, studying two factors: loading force and storage period. These two factors were tested across both healthy and infected fruit groups, with three replications. All data were subjected to one-way analysis of variance, ANOVA using SPSS19 software. The F test was used to determine the significance of independent factors (loading force and storage period), and significant differences of means were compared using the Duncan’s multiple ranges test at 5% significant level.

Results and Discussion

The results of variance analysis which was carried out to examine the effect of loading variables, storage time and their interaction on the amount of light intensity in images taken with protocols T₁ and T₂ for flesh tissue and bruised part of apple fruit without pests and with pests is shown in Table 2.

Table 2. Analysis of variance of factors considered on the T1 and T2 images of apple fruit

Factors	df	T1 image of flesh tissue without pests	T2 image of flesh tissue without pests	T1 image of bruised tissue without pests	T2 image of bruised tissue without pests
		Mean squares
Loading force	3	1597.72*	2896.51**	88.91 ns	205.11ns
Storage period	2	1884.51**	314.23ns	8652.13**	3096.22**
Loading force × Storage period	6	625.23*	481.22ns	65.11ns	29.53ns
Error		118.12	156.62	97.15	42.84
Coefficient of variation		10.25	12.26	19.42	20.72
	df	T1 image of bruised tissue with pests	T2 image bruised tissue with pests	T1 image of flesh tissue with pests	T2 image flesh tissue with pests
Loading force	3	682.42**	47.62*	432.86ns	1976.85*
Storage period	2	9586.22**	3982.27**	38.56ns	2453.22**
Loading force × Storage period	6	212.91**	38.52ns	796.22ns	352.91ns
Error		31.25	22.47	683.57	501.22
Coefficient of variation		15.76	18.74	19.49	22.05
** Significant at the 1% level, * Significance at the 5% level, and ns Non – significant

Histogram analysis of T1 and T2 images of flesh tissue of apple fruits without pests

A sample of images with T₁ and T₂ protocols related to flesh tissue of pest-free apple fruits without applying force and also the histogram of a sample of their selected area are shown in Figure 1. As can be seen in this figure, the intensity of brightness in the T₁ images is higher than in the T₂ images. Also, the standard deviation of the sample histogram with T₂ protocol is more than T₁ protocol, which indicates more fluctuations in images with T₂ protocol. Therefore, it can be concluded that the weighted images taken with protocol T₁ are completely different. That is, tissues with a long T₁ have the weakest signal, which causes the T₁ images to be brighter. In other words, the bright pixels in the images with the T₁ protocol are related to short T₁ (1500-2000 ms) (Li, Li, and Zhang, 2018; Shicheng et al., 2019).

According to the results obtained for flesh tissue of apple fruits without pests with T₁ protocol, loading force (p<0.05), storage period (p<0.01), and their interaction (p<0.05) were significant (Figure 2a). Additionally, on the basis of the acquired results, with increasing storage time and loading force, the brightness (from 0 to 255) of flesh tissue of pest-free apple fruits decreased with T₁ protocol and its value became darker (got closer to zero), which means a change in tissue color due to pressure. No statistically significant differences were observed in the loading forces during the storage periods of 25 and 50 days, nor in the forces of 450 and 600 N across the storage durations of 1, 25, 50, and 75 days. Also, as can be found from Table 2, only the loading force was significant (p<0.01) and the storage period and their interaction were not significant for flesh tissue of apple fruits without pests with T₂ protocol. According to Figure 2b, it is apparent that there is a significant difference between all four loading forces and the brightness significantly decreased with increasing of loading force so the maximum and minimum of brightness belonged to loading forces of 150 N and 600 N, respectively.

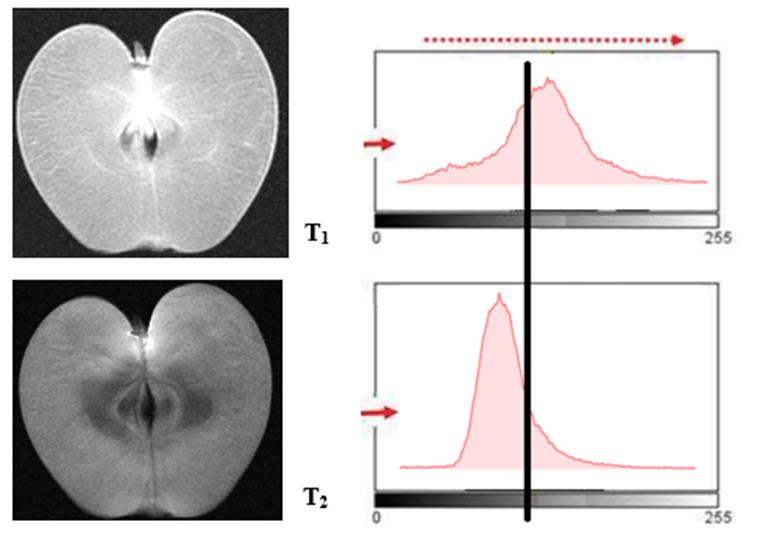

Fig. 1. Histogram of magnetic resonance imaging with T₁ and T₂ protocol of pest-free apple fruits without applying force

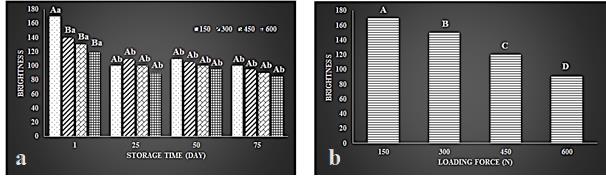

Fig. 2.a: Interaction effect of loading force and storage time on light intensity of flesh tissue of apple fruits without pests with T₁ protocol. b: Comparison of the mean effect of loading force on the brightness of flesh tissue of apple fruits without pests with T₂ protocol. Uppercase letters indicate insignificance in a fixed storage period and lowercase letters indicate insignificance in a fixed loading force

Histogram analysis of T1 and T2 images of flesh tissue of apple fruits with pests

Figure 3 shows an example of images with T₁ and T₂ protocols related to flesh tissue of apple fruits with pests. As it can be seen, the track of the pest passage in T₁ and T₂ images is quite clear, although due to the presence of hydrocarbon residues of the pest, fewer details of the track were detectable in T₁ images. At first, the pupae of the "Apple" fruit pest enter the "Apple" seeds, and since the "Apple" seeds are seen in T₁ images, the details of the pest infestation of the seeds are more specific in this type of imaging. Similarly, Haishi, Koizumi, Arai, Koizumi, and Kano (2011) investigated the contamination of apple fruits harvested by peach fruit moth (Carposina sasakii Matsumura) using non-destructive magnetic resonance imaging (MRI) and T₁ and T₂ protocols. Similar researches were also done by Herremans et al. (2014), Mazhar et al. (2015), Shicheng et al. (2019), and Noshad et al. (2020) on apple, avocado, blueberry, and quince fruits, respectively, using low field nuclear magnetic resonance and T₁ and T₂ images.

Fig. 3. Comparison of magnetic resonance images of T₁ and T₂ protocols related to flesh tissue of apple fruits with pests

According to the results (Table 2), none of the factors were significant for the flesh tissue of infected apple fruits with T₁ protocol, but with T₂ protocol, the effect of two factors of loading force and storage period were significant (p<0.01). As it can be found from Figure 4, the light intensity of flesh tissue of infected apple fruits "goes" to the blurred, of course, there was no statistically significant difference between 300, 450, and 600 N forces, but these three forces had a significant difference with the force of 150 N. It can also be seen that with increasing storage period, the light intensity of flesh tissue of pest infested apple fruits become darker and of course there is no statistically significant difference between samples of storage period after 25, 50, and 75 days. However, there are statistically significant differences between these three storage periods and the samples taken on the first day.

Histogram analysis of T1 and T2 images of bruised tissue of apple fruits without pests

As shown in Figure 5, the bruised area is clearer in the T₂ protocol image. This is due to the exit of more water molecules and the decrease of moisture from the cells of this area and absorption by other areas during 75 days of storage, but in the image with the T₁ protocol, there is not much difference in the area bruised compared to other areas because the loaded areas show lower water content (shorter T₂ time) compared to unloaded areas with higher water content (longer T₂ time). This justification was also presented by McRobbie et al. (2009).

Fig. 4. Mean Comparison of the effect of loading force and storage period on the brightness of the T₂ images of flesh tissue of pest infested apple fruits

Fig. 5. Difference between T₁ and T₂ magnetic resonance images of the bruised tissue of apple fruits without pests after 75 days of storage

For the bruised tissue of apple fruit without pest with T₁ protocol only the storage period was significant (p<0.01) and their loading force and interaction were not significant (Table 2). The results of comparing the mean in Figure 6 show that as the storage period increases, the brightness of the bruised fruit with the T₁ protocol becomes darker and there is a statistically significant difference between them. Only the storage period was significant (p<0.01) for the pest-free bruised tissue of apple fruit with T₂ protocol and the loading force and the interaction of these two factors were not significant. According to Figure 8, with increasing storage period, the amount of darkness for the bruised tissue increases and a significant difference is observed between the two storage periods of 50 and 75 days. In a similar experiment on Fuji apples, Gonzalez et al. (2001) studied the development of internal tissue bruising due to high levels of carbon dioxide in controlled atmospheric storage and concluded that T₂ measurements of images with better contrast provide a contrast between normal tissue and tissue with internal browning relative to the image produced using differences in proton density or T₁ measurements. These results were also similar to the results of Hernández-Sánchez, Hills, Barreiro, and Marigheto (2007), Defraeye et al. (2013), and Noshad et al. (2020) on internal browning of pear, apple, and quince fruits using T₂ protocol, respectively.

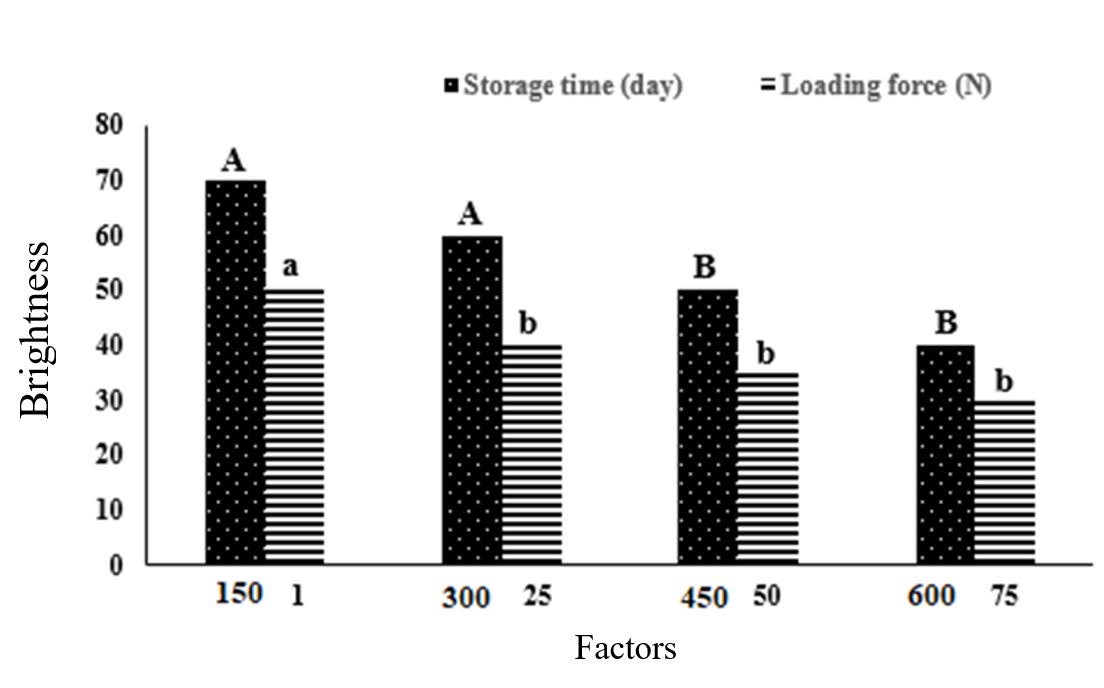

Fig. 6. Mean Comparison of the effect of storage period on the brightness of T₁ and T₂ images of bruised tissue of apple fruit without pest

Histogram analysis of T1 and T2 images of bruised tissue of apple fruits with pests

Figure 7 shows the difference between the magnetic resonance images with the T₁ and T₂ protocols of bruised tissue of apple fruits with pests. As shown in the figure, the bruised tissue with the T₁ protocol is clearer, because the infected tissue loses its moisture by creating an empty space by the pest over time. Also, the loaded area is darkened due to the decrease in moisture because with increasing interval the humidity decreases after loading (Diels et al., 2017; Noshad et al. 2020). According to the results (Table 2), the contaminated tissue of apple fruit bruised with T₁ protocol was significant for both loading force and storage period (p<0.01) and the interaction of these two factors was also significant. Furthermore, based on Figure 8, it can be concluded that the light intensity of the bruised tissue of apple fruit decreased with increasing storage period and this was observed for all four loading forces.

Fig. 7. Difference between T₁ and T₂ magnetic resonance images of the bruised area of apple fruit with pest

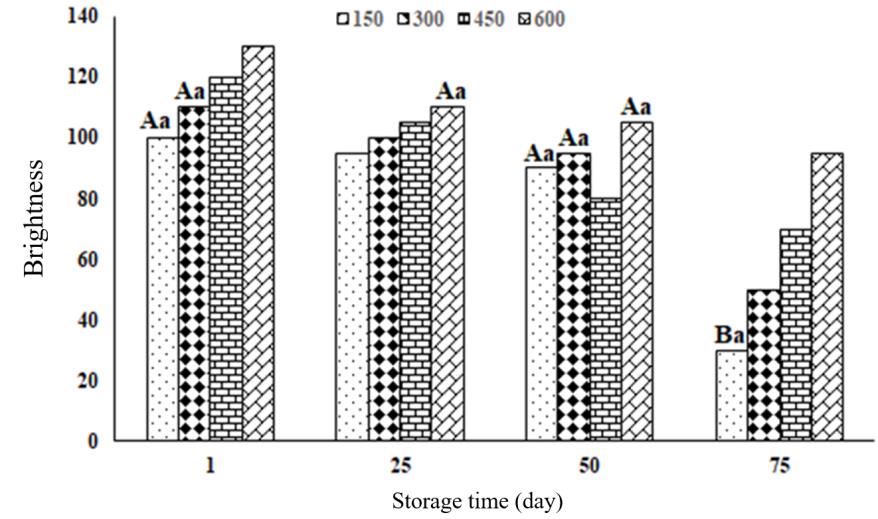

Fig. 8. Interaction effect of loading force and storage time on light intensity of bruised tissue of apple fruits with pests by T₁ protocol. Uppercase letters indicate insignificance in a fixed storage period and lowercase letters indicate insignificance in a fixed loading force

There was no statistically significant difference between loading forces for samples in the storage period of 25-day and also there was no statistically significant difference between loaded forces of 150 and 600 N for 50-day storage period, but a significant difference was observed between all four loading forces in 75-day storage period. In addition, the effect of loading force parameters (p<0.05) and storage period (p<0.01) on the bruised tissue of apple fruits with pests by T₂ protocol were significant and the interaction of these two factors was not significant. According to Figure 9, it is clear that with increasing loading force, the amount of bruised tissue in the infected fruit became darker and a statistically significant difference was observed between the forces of 150 and 600 N for the specified value. Also, with increasing the storage period from 25 to 75 days, the light intensity of the bruised fruit tissue becomes darker and there is a statistically significant difference between these storage periods. These results were also similar to the results of Noshad et al. (2020) on internal browning of quince fruit using low field nuclear magnetic resonance and T₁ and T₂ images.

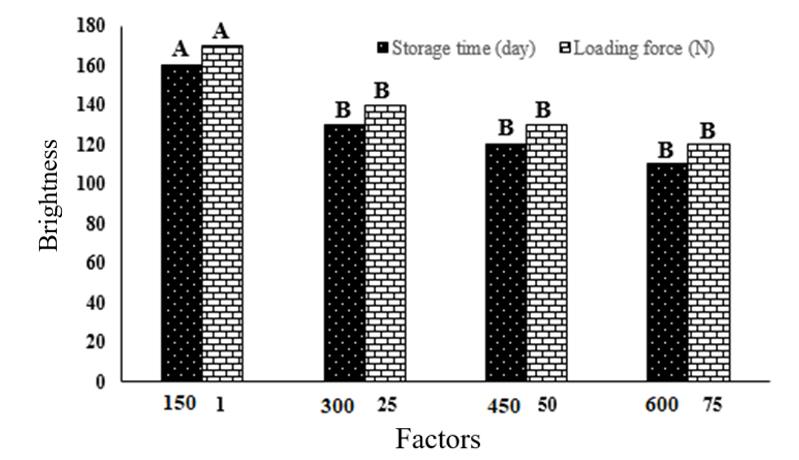

Fig. 9. Mean Comparison of the effect of storage period and loading force on the brightness of T₁ images of bruised tissue of apple fruit with pest

Conclusion

This study investigates the application of magnetic resonance imaging (MRI) for qualitative analysis of apple fruit during storage, focusing on both healthy and pest-infected samples. The research employs T₁ (spin-lattice relaxation time) and T₂ (spin-spin relaxation time) MRI protocols to assess differences in tissue structure and water content over a storage period of 25, 50, and 75 days at 4°C. A total of 200 apples were subjected to quasi-static loading at four levels (150, 300, 450, and 600 N) to induce bruising, mimicking conditions encountered during handling and transportation.

The key findings indicate that T₁ imaging provides clearer differentiation of flesh tissue in pest-free apples, whereas T₂ imaging enhances the visibility of bruised areas, particularly in apples without pest. In the case of pest-infected apple fruits, both T₁ and T₂ MRI protocols revealed distinct characteristics of tissue integrity and pest infiltration. T₁ imaging showed identifiable tracks of pest pathways, particularly around seeds, where the infestation was more pronounced. Meanwhile, T₂ imaging provided clearer visualization. The study highlights significant effects of loading force and storage duration on MRI image contrast, revealing distinct patterns in tissue degradation and water distribution. Histogram analyses of T₁ and T₂ images further illustrate these differences, showing variations in brightness and standard deviation across different experimental conditions.

Overall, MRI proves to be effective in non-destructively assessing the quality of apple fruit, offering insights into structural changes, moisture loss, and pest-induced damage. This research underscores the potential of MRI as a robust tool for quality assessment in agricultural produce, contributing valuable data to improve storage and transportation practices.

Acknowledgment

The authors would like to thank the Ferdowsi University of Mashhad for providing the laboratory facilities and financial support through the project.

Declaration of competing interests

The authors declare that they have no conflict of interest.

Authors Contribution

R. Khodabakhshian Kargar: Supervision and management, Data collection, Data processing, Statistical analysis, Validation, Extracting, and preparing the primary text

R. Baghbani: Conceptualization, Methodology, Technical consultation, Software services, Interpreting the results, Editing, and translating the text.

References

1. Defraeye, T., Lehmann, V., Gross, D., Holat, C., Herremans, E., Verboven, P., Verlinden, B. E., and Nicolai, B. M. (2013). Application of MRI for tissue characterisation of ‘Braeburn’ apple. Postharvest Biology and Technology, 75, 96-105..DOI
2. Diels, E., Dael, M. V., Keresztes, J., Vanmaercke, S., Verboven, P., Nicolai, B., Saeys, W., Ramon, H., and Smeets, B. (2017). Assessment of bruise volumes in apples using X-ray computed tomography. Postharvest Biology and Technology, 128, 24-32..DOI
3. Galed, G., Fernández-Valle, M. E., Martinez, A., and Heras, A. (2004). Application of MRI to monitor the process of ripening and decay in citrus treated with chitosan solutions. Magnetic Resonance Imaging, 22, 127-137..DOI
4. Gonzalez, J. J., Valle, R. C., Bobroff, S., Biasi, W. V., Mitcham, E. J., and McCarthy, M. J. (2001). Detection and monitoring of internal browning development in ‘Fuji’ apples using MRI. Postharvest Biology and Technology, 22, 179-188..DOI
5. Haishi, T., Koizumi, H., Arai, T., Koizumi, M., and Kano, H. (2011). Rapid detection of infestation of apple fruits by the peach fruit moth, Carposina sasakii Matsumura, larvae using a 0.2-T dedicated magnetic resonance imaging apparatus. Applied Magnetic Resonance, 41, 1-18..DOI
6. Hernández-Sánchez, N., Hills, B. P., Barreiro, P., and Marigheto, N. (2007). An NMR study on internal browning in pears. Postharvest Biology and Technology, 44, 260-270..DOI
7. Herremans, E., Melado-Herreros, A., Defraeye, T., Verlinden, B., Hertog, M., Verboven, P., Val, J., Fernández-Valle, M. E., Bongaers, E., Estrade, P., Wevers, M., Barreiro, P., and Nicolai, B. M. (2014). Comparison of X-ray CT and MRI of watercore disorder of different apple cultivars. Postharvest Biology and Technology, 87, 42-50..DOI
8. Khodabakhshian, R., and Emadi, B. (2017). Application of Vis/SNIR hyperspectral imaging in ripeness classification of pear. International Journal of Food Properties, 20(sup3)..DOI
9. Khodabakhshian, R., Emadi, B., Khojastehpour, M., and Golzarian, M. (2019). Instrumental measurement of pomegranate texture during four maturity stages. Journal of Texture Studies, 50..DOI
10. Khodabakhshian, R. (2022). Raman Spectroscopy for Fresh Fruits and Vegetables. In P. B. Pathare and M. S. Rahman (Eds.), Nondestructive Quality Assessment Techniques for Fresh Fruits and Vegetables (pp. 193–214). Springer..DOI
11. Lan, W., Jaillais, B., Chen, S., Renard, M. G. C., Leca, A., and Bureau, S. (2022). Fruit variability impacts puree quality: Assessment on individually processed apples using the visible and near infrared spectroscopy. Food Chemistry, 390, 133088..DOI
12. Leiva-Valenzuela, G. A., and Aguilera, J. M. (2013). Automatic detection of orientation and diseases in blueberries using image analysis to improve their postharvest storage quality. Food Control, 33(1), 166-173..DOI
13. Li, M., Li, B., and Zhang, W. J. (2018). Rapid and non-invasive detection and imaging of the hydrocolloid-injected prawns with low-field NMR and MRI. Food Chemistry, 242, 16-21..DOI
14. Lu, L., Hu, Z., Hu, X., Li, D., and Tian, S. (2022). Electronic tongue and electronic nose for food quality and safety. Food Research International, 162, 112214..DOI
15. Mazhar, M., Joyce, D., Cowin, G., Brereton, I., Hofman, P., Collins, R., and Gupta, M. (2015). Non-destructive 1H-MRI assessment of flesh bruising in avocado (Persea americana M.) cv. Hass. Postharvest Biology and Technology, 100, 33-40..DOI
16. McRobbie, D. W., Moore, E. A., Graves, M. J., and Prince, M. R. (2009). MRI from picture to proton. Cambridge University Press..DOI
17. Mierzwa, D., Szadzinska, J., Gapinski, B., Radziejewska-Kubzdela, E., and Biegańska-Marecik, R. (2022). Assessment of ultrasound-assisted vacuum impregnation as a method for modifying cranberries’ quality. Ultrasonics Sonochemistry, 89, 106117..DOI
18. Noshad, F., Asghari, A., Azadbakht, M., and Ghasemnezhad, A. (2020). Comparison of different Magnetic Resonance Imaging (MRI) protocols from Quince fruit. Iranian Journal of Biosystem Engineering, 51(3), 539-549..DOI
19. Olakanmi, S., Karunakaran, C., and Jayas, D. (2023). Applications of X-ray micro-computed tomography and small-angle X-ray scattering techniques in food systems: A concise review. Journal of Food Engineering, 342, 111355..DOI
20. Ozel, B., and Oztop, M. H. (2021). A quick look to the use of time domain nuclear magnetic resonance relaxometry and magnetic resonance imaging for food quality applications. Current Opinion in Food Science, 41, 122-129..DOI
21. Perez-Palacios, T., Avila, M., Antequera, T., Torres, J. P., González-Mohino, A., and Caro, A. (2023). MRI-computer vision on fresh and frozen-thawed beef: Optimization of methodology for classification and quality prediction. Meat Science, 197, 109054..DOI
22. Razavi, M. S., Asghari, A., Azadbakh, M., and Shamsabadi, H. A. (2018). Analyzing the pear bruised volume after static loading by Magnetic Resonance Imaging (MRI). Scientia Horticulturae, 229, 33-39..DOI
23. Shicheng, Q., Youwen, T., Ping, S., Kuan, H., and Shiyuan, S. (2019). Analysis and detection of decayed blueberry by low-field nuclear magnetic resonance and imaging. Postharvest Biology and Technology, 156, 110951..DOI
24. Srivastava, R. K., Talluri, S., Beebi, S. K., and Kumar, B. R. (2018). Magnetic resonance imaging for quality evaluation of fruits: A review. Food Analytical Methods, 11, 2943-2960..DOI
25. Wieme, J., Mollazade, K., Malounas, L., Zude-Sasse, M., Zhao, M., Gowen, A., Argyropoulos, D., Fountas, S., and Van Beek, J. (2022). Application of hyperspectral imaging systems and artificial intelligence for quality assessment of fruit, vegetables and mushrooms: A review. Biosystems Engineering, 222, 156-176..DOI
26. Zhang, L., and McCarthy, J. M. (2012). Black heart characterization and detection in pomegranate using NMR relaxometry and MR imaging. Postharvest Biology and Technology, 67, 96-101..DOI
27. Zhang, D., Xu, Y., Huang, W., Tian, X., Xia, Y., Xu, L., and Fan, S. (2019). Nondestructive measurement of soluble solids content in apple using near infrared hyperspectral imaging coupled with wavelength selection algorithm. Infrared Physics and Technology, 98, 297-304..DOI
28. Zhang, Z., Liu, H., Chen, D., Zhang, J., Li, H., Shen, M., Pu, Y., Zhang, Z., Zhao, J., and Hu, J. (2022). SMOTE-based method for balanced spectral nondestructive detection of moldy apple core. Food Control, 141, 109100..DOI
